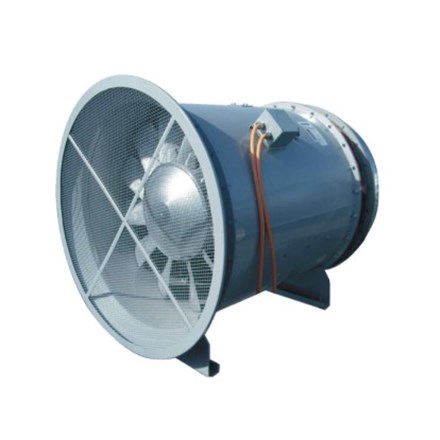

mcr Monsun BO - axial air supply and exhaust fan

Key details

Fire resistance classes:

  • not required
  • EU Declaration of conformity W/02/2012.

Patent No. 216872 issued by the Patent Office of the Republic of Poland.



Description

mcr Monsun BO axial fans are used in comfort ventilation systems as intake or exhaust fans.

These fans are used for forcing through clean air in the appropriate direction, depending on the making variant.

The devices are adapted for outdoor as well as indoor operation, in vertical and horizontal position.

Get in touch

Sales

Download

  • possibility of vertical and horizontal installation
  • possibility of adjusting rotor blades every 1° ensures obtaining the assumed operation point
  • comprehensive accessories
  • available diameters: 355, 400, 450, 500, 560, 630, 710, 800, 900, 1 000 mm
  • efficiency up to 170 000 m3/h
  • compression up to 1 300 Pa
  • nominal power 0.55 kW - 90 kW
  • rotation speeds n = 750; 1 000; 1 500; 3 000 RPM
  • IP 55 protection class

Detailed technical specifications are contained in the technical catalogue.

  • Production halls and warehouses
  • Logistics centers
  • Public buildings
  • Commercial buildings
  • Residential buildings

Making variants:

  • one-speed
  • two-speed

Accessories:

  • SW installation feet for horizontal installation
  • KD elastic joints - vibration compensators
  • PK counterflanges for duct installation
  • KS, KS-V automatic back draft dampers
  • PP structures for vertical installation
  • TH/R noise silencers
  • WS service switches
  • AM/BM vibration insulators
  • DS grated suction nozzles
  • SO cover grates
  • WO grated outlet stub pipes
